Overview

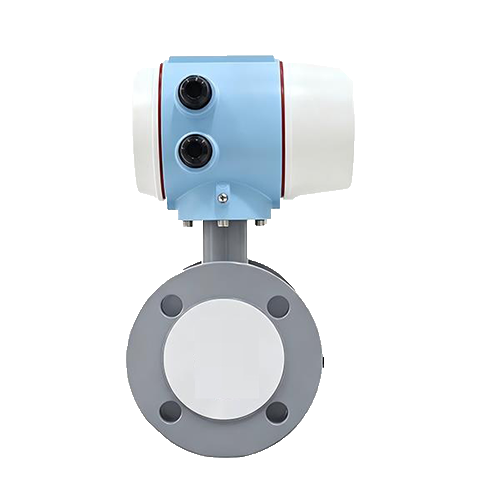

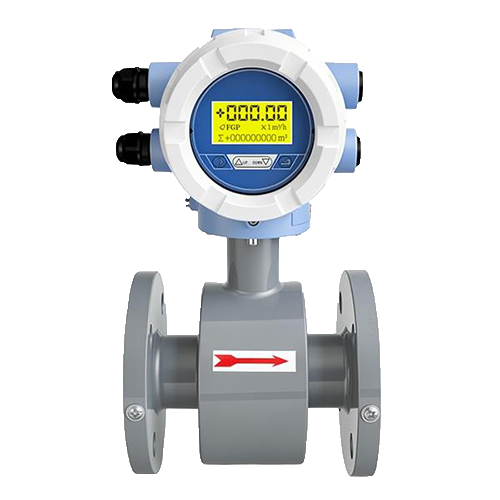

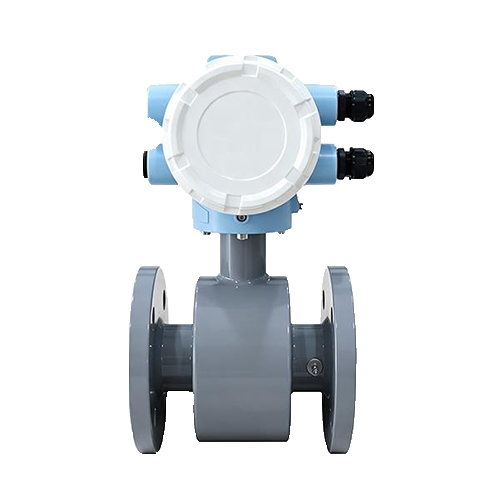

The intelligent electromagnetic flowmeter supports custom sizes ranging from DN15 to DN1800. Integral and remote types are available. Featuring high accuracy of Class 0.5, it causes no pressure loss and is suitable for various conductive liquids. It supports multiple signal outputs including 4-20mA, RS485 and HART. With corrosion and abrasion resistance, it is widely applied in municipal engineering, environmental protection, water supply & drainage, chemical, food and other industries.
Technical Specifications
| Nominal Diameter | 15-1800mm |
| Output Signal | 4-20mA + RS485 as standard; HART optional |
| Overall Accuracy | Class 0.5 |
| Power Supply | 24±20% VDC, 85–250 VAC |
| Nominal Pressure | 4.0 MPa, 1.6 MPa, 1.0 MPa, 0.6 MPa (2.5 MPa and other pressures available by special order) |
| Liner Material | Neoprene, PTFE, Polyurethane rubber, FEP, PFA, Ceramic, etc. |
| Flange Material | Carbon steel, Stainless steel (304, 316, 316L) |
| Signal Electrode Type | Fixed type |
| Protection Class | IP65; IP68+IP65 (for remote type only: sensor IP68, converter IP65) |
| Transmission Distance | For remote electromagnetic flowmeter, the sensor and converter are connected by signal cable, and the cable length shall be less than 300 m. |
| Maximum Flow | Velocity 10 m/s |
| Connection Type | Flange connection |
| Fluid Conductivity | ≥30 μS/cm |
| Power Consumption | ＜15 W |
| Ambient Temperature | -10 ℃ ~ 60 ℃ |
| Electrode Material | 316L, HB, HC, Titanium, Tantalum, Platinum, Platinum-Iridium alloy, Gold-plated electrode, Tungsten carbide |
| Ground Ring Material | 316L, Titanium, Tantalum |
| Electrode Quantity | 3 electrodes as standard (two measuring electrodes, one ground electrode) |
